    Aluminum Alloy Hydraulic Tailgate Truck Lift 1200mm 1500KG Loading Capactity

    Ask Lasest Price
    Brand Name : Leeo
    Model Number : LA-15-135
    Certification : CE
    Price : $2000---$5000/unit
    Supply Ability : 200 units/ per Month
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Aluminum Alloy Hydraulic Tailgate Truck Lift 1200mm 1500KG Loading Capactity

    Loading capactity of 1500KG Hydraulic Tailgate Truck Tail Lifter 1200mm with material Aluminum Alloy


    Product Description
    Operating VoltageDC12V/24V
    Power2KW
    Lift Speed60-90mm/s(adjustable)
    System Pressure18MPa
    Load Rated1500 KG
    Max Lift Height1350 MM
    Platform MaterialSteel or Aluminum Alloy
    Platform Dimension (Width* height)2000 * 1800 MM(also can do customized)
    Platform Weight290-400 KG(depends on material)

    Aluminum Alloy Hydraulic Tailgate Truck Lift 1200mm 1500KG Loading Capactity

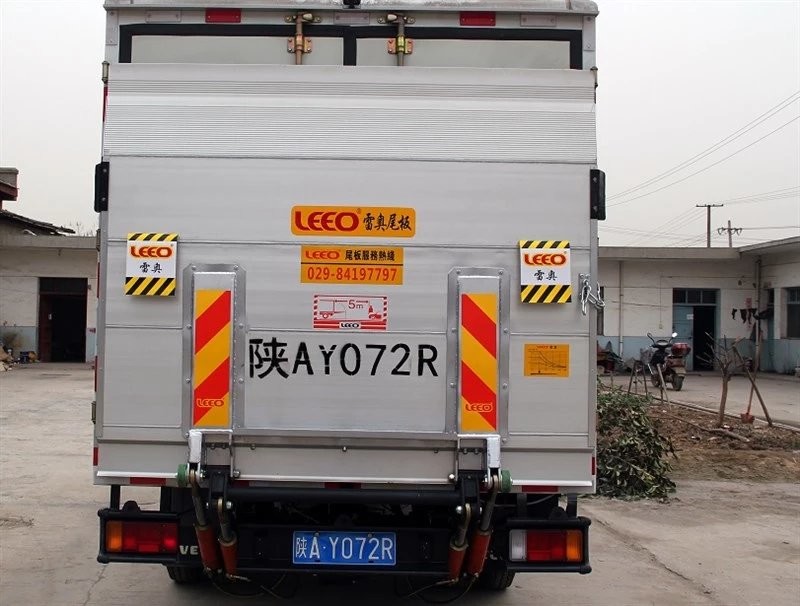

    A tail lift (term used in the UK, also called a "liftgate" in North America) is a mechanical device permanently installed on the rear of a work truck, van, or lorry, and is designed to facilitate the materials handling of goods from ground level or a loading dock to the level of the vehicle bed, or vice versa.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    How often should a tail lift be inspected?

    every six months

    Those inspections must take place at a frequency of no more than every six months, and it is a legal requirement that you have the current report of this examination for the tail-lift that is fitted to the vehicle.

    Aluminum Alloy Hydraulic Tailgate Truck Lift 1200mm 1500KG Loading Capactity


    Why Choose US


    A>Our products have a high technical starting point: they are at the highest level in China.


    B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    C> Our Philosophy is: Active service, Pursuit of perfection


    D> We are proficient in products, understand customers, put people first, and pursue excellence.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    Aluminum Alloy Hydraulic Tailgate Truck Lift 1200mm 1500KG Loading Capactity


    FAQ


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.
