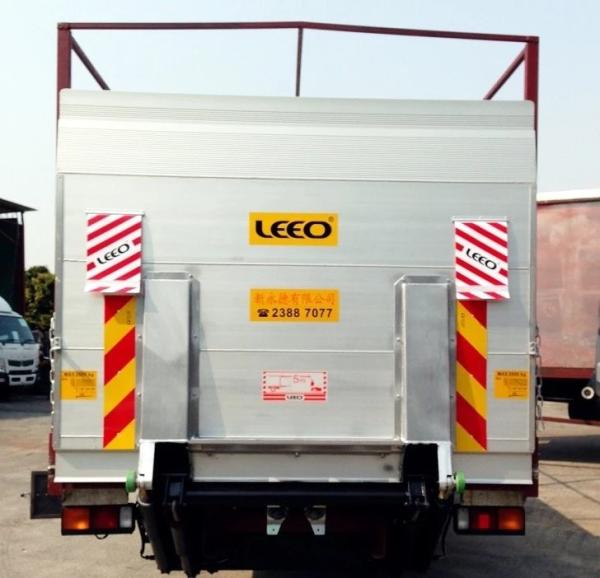

OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter from wholesalers

    Buy cheap OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter from wholesalers
    • Buy cheap OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter from wholesalers
    • Buy cheap OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter from wholesalers
    • Buy cheap OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter from wholesalers

    OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-10-152
    Certification : CE
    Price : $2000---$5000/unit
    Supply Ability : 200 units/ per Month
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter

    Truck Lift Gate 1000 KG Truck Hydraulic Tail Lift For Sale

    Product Description

    Max lift height: 1520 MM

    Platform Dimension(W*H) 2300*1800 MM

    Weight: 420--535 Kg

    Lift speed: 60--90 mm/s

    System Pressure: 18Mpa

    Load Capacity: 1000 Kg

    Power: 2KW

    Voltage: DC24V

    Platfrom Material: Steel or Aluminum


    What is a hydraulic tailgate?
    A Liftgate, which can also be referred to as a Tail lift, is a mechanical device which is installed permanently at the back or the rear end of a large vehicle like a truck, a lorry or a van. It is used to load and unload freight from the ground and into the back of the truck.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.

    OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter

    Why Choose US


    A>Our products have a high technical starting point: they are at the highest level in China.


    B>Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    C>Our Philosophy is: Active service, Pursuit of perfection


    D>We are proficient in products, understand customers, put people first, and pursue excellence.


    OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter

    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    OEM Color Truck Lift Gate 1000KG Loading Hydraulic Tail Gate Lifter


    FAQ


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
