Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van from wholesalers

    Buy cheap Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van from wholesalers
    • Buy cheap Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van from wholesalers
    • Buy cheap Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van from wholesalers
    • Buy cheap Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van from wholesalers

    Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-15-152
    Certification : CE
    Price : $2000---$5000/unit
    Supply Ability : 200 units/ per Month
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van

    Steel And Aluminum Hydraulic Loading And Unloading Tailgate Lift

    Product Description
    Platform Weight390-515 KG(depends on material)
    Operating VoltageDC24V
    Power2KW
    Lift Speed

    60-90mm/s(adjustable)

    Max Lift Height1520 MM
    Platform MaterialSteel or Aluminum Alloy
    Platform Dimension (Width* height)2300 * 1800 MM(also can do customized)
    Load Rated1500 KG

    Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van


    Quality Attributes:


    With A Five-Cylinder Fully Automatic Balance System, And The Hydraulic System Has A Relative-Position Intelligent Memory Function, Which Make It More Balanced And Safe
    The Main Parts, Such As Hydraulic Pump, Oil Cylinder, Gaskets, Tubes And Electric System, Are Imported From Aboard With High Quality And Excellent Performance
    There Is A Electric Control Device Both Inside And Outside Of The Vehicle, Which Makes It Easier To Operate
    The Hydraulic System Of Special Trail Board Is Equipped With A Hydraulic Explosive-Proof Valve, Which Can Effectively Avoid Accident
    Passed Through Strict Acid Washing, Phosphating And Baking Finish Processes,

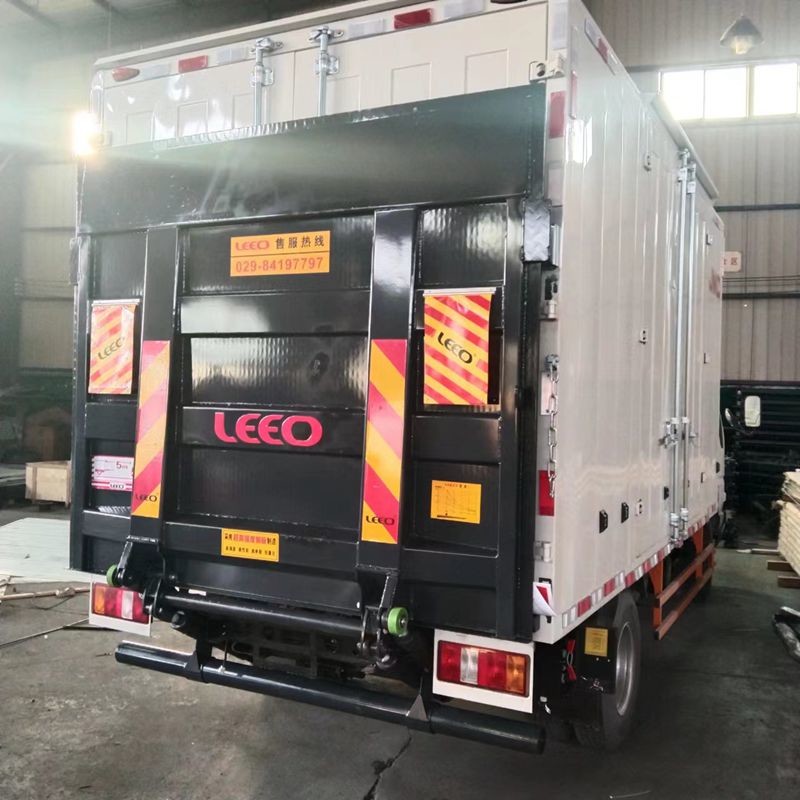

    A hydraulic tailgate lift, or rear lift, is a hinged flap at the rear of a vehicle that can move up and down to load and unload any material in the vehicle. In short, a tailgate or rear lift is a large and heavy piece of equipment that adds weight to the overall vehicle. The hydraulic tailgate lifter is operated by the driver or co-driver of the vehicle. Standard tailgates use hydraulics to push pistons through cylinders to move the doors up and down. The movement of the door is controlled with the help of a switch box with up and down functions. The hydraulic rear lift is produced first and all components are ready to be installed on the vehicle. It takes several days to install the tailgate on the vehicle. The hydraulic tailgate is designed according to the space of the vehicle.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van


    FAQ


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST

    Steel Aluminum Hydraulic Loading And Unloading Tailgate Lift For 1000kg 1500kg Van

    Welcome Inquiry!

    Sales Manager

    Penny Tian

    E-mail:pennyleeo88@163.com

    Whatsapp/Wechat:+86 18209319756

    Tel:+86 29 84197797 Fax: +86 29 84197813

    Website:http://www.tail-gatelift.com
