    Hydraulic Tail Gate Lift Equipment 12V / 24V With Fuel Tank 8L For Trucks

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-10-135
    Certification : CE
    Price : USD 1900-3200/SET
    Payment Terms : T/T, Western Union
    Supply Ability : 200 sets per Months
    Delivery Time : 10-15working days
    • Product Details
    • Company Profile

    Hydraulic Tail Gate Lift Equipment 12V / 24V With Fuel Tank 8L For Trucks

    Hydraulic Tailgate Lift For Trucks/Van/Lorry


    The car tail lift is also called the car lifting tail lift, the car loading and unloading tail lift, the lifting tail lift, the hydraulic car tail lift, and the truck tail lift. Loading and unloading equipment.
    Car tailgates can be classified into: cantilever tailgates, vertical tailgates, rocker tailgates, and folding tailgates. Our company's main product is "cantilever tailgate".


    The Specifications Of LA-10-135


    Product nameHydraulic Tailgate Lift Equipment
    Model No.LA-10-135
    MaterialSteel
    Loading Capacity1000kg
    Lift Height1350mm
    Voltage12V/24V, 2KW/3KW
    ColorBlack

    Hot Sale Model's specifications


    Model NO.Loading Capacity(kg)Height from Ground -Carriage(mm)

    Platform Dimension (W*H) MM

    Operating Voltage(V)Lifting Speed(CM/S)MaterailG.W.(KG)
    LA-7-90700800-9001600*170012V/24V6-9Steel/Aluminum Alloy260-320
    LA-10-1201000950-1200

    1800*1700

    12V/24V6-9Steel/Aluminum Alloy290-390
    LA-15-1201500950-1200

    2000*1700

    12V/24V6-9Steel/Aluminum Alloy330-450
    LA-15-13515001050-1350

    2200*1800

    12V/24V6-9Steel/Aluminum Alloy370-450
    LA-15-15215001150-1520

    2300*1800

    12V/24V6-9Steel/Aluminum Alloy430-550
    LA-20-13520001050-1350

    2400*1800

    12V/24V6-9Steel/Aluminum Alloy410-520
    LA-20-15220001150-1520

    2400*1800

    12V/24V6-9Steel/Aluminum Alloy460-580
    LA-25-15225001150-1520

    2400*1800

    12V/24V6-9Steel/Aluminum Alloy490-630
    LA-25-16025001150-1600

    2400*1800

    12V/24V6-9Steel/Aluminum Alloy490-750

    Advantages of installing a Hydraulic tailgate:


    1. Reduce labor force and reduce labor cost. Only with manual forklift device, one person can complete the loading and unloading of goods at any time.

    2. In the process of cargo loading and unloading, the car tail lift has the characteristics of stability, safety, speed, labor saving and high efficiency, and is not limited by the site, equipment and manpower.

    3. There are various types of tailgates and complete sizes and specifications, and they can also be customized according to customer needs to meet the needs of various users.

    4. Automobile tailgate can realize standardized equipment and standardized operation.

    5. The tailgate of the car is generally installed at the rear of the cargo compartment, which neither takes up space nor affects the overall appearance of the vehicle. And in the event of a rear-end collision, the tailgate can play a certain protective role to avoid damage to the compartment.


    Applicable models: flatbed trucks, vans, large trucks, electric trucks. We can also do customized product as per customers requirement.


    Our Service


    1.Warranty:12-18 months

    2.Free Spare parts

    3.Installation instruction manual, tracking and guiding installation throughout the process.

    4.We also have own forwarder who have more experience,we can ship to you directly.

    5.Customize service

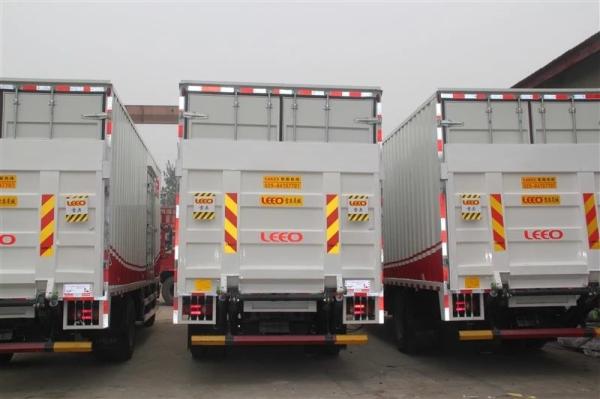

    Product Real Shot Show

    Hydraulic Tail Gate Lift Equipment 12V / 24V With Fuel Tank 8L For Trucks

    Hydraulic Tail Gate Lift Equipment 12V / 24V With Fuel Tank 8L For Trucks

    Hydraulic Tail Gate Lift Equipment 12V / 24V With Fuel Tank 8L For Trucks


    If any other more requirement,pls send inquiry to us in time!
