    Steel material black light hydraulic system truck tailgate lift to 1350m, load capacity 1500kg

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-15-135
    Certification : CE
    Price : $2000---$5000/unit
    Supply Ability : 200 units/ per Month
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Steel material black light hydraulic system truck tailgate lift to 1350m, load capacity 1500kg

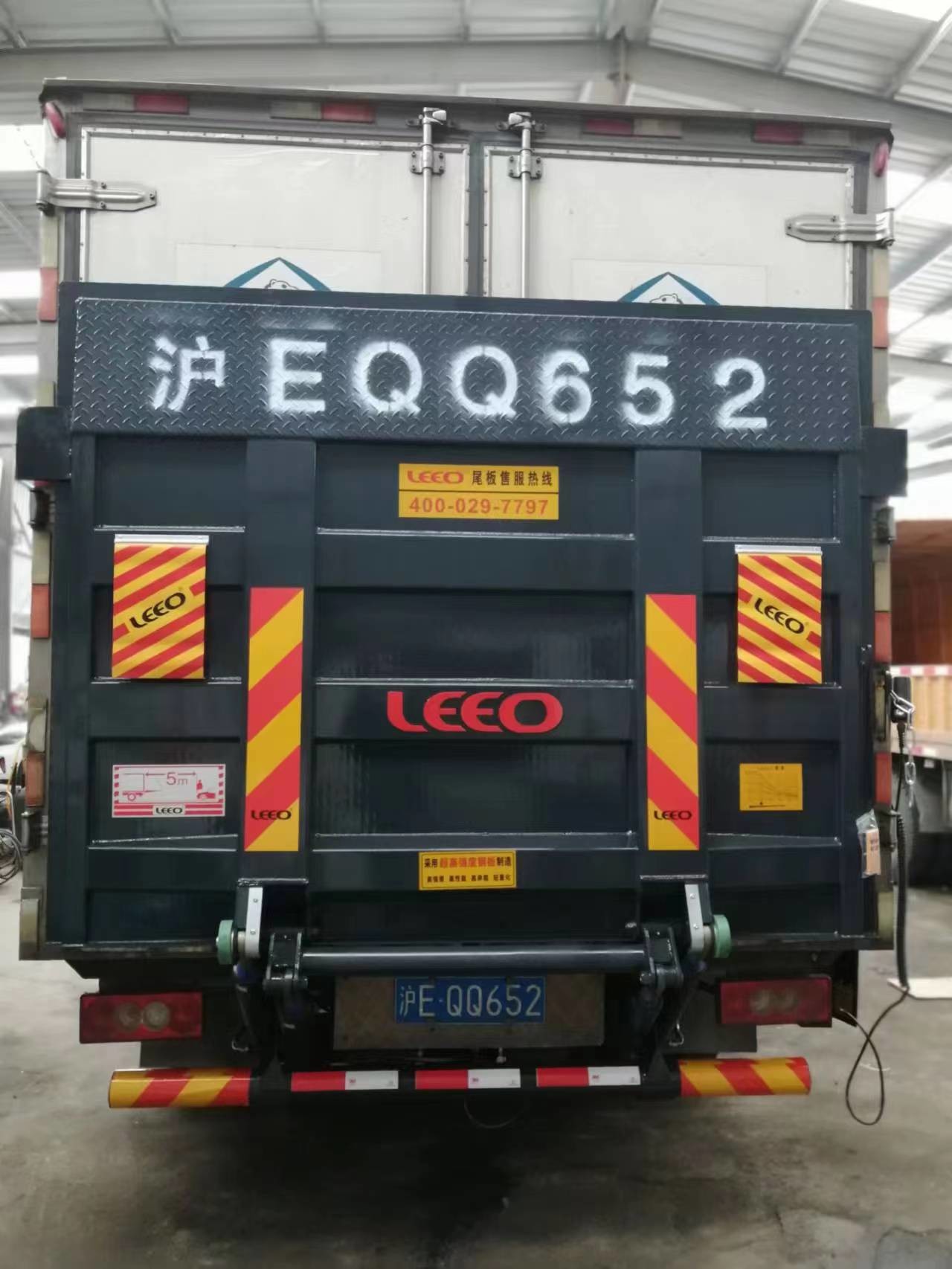

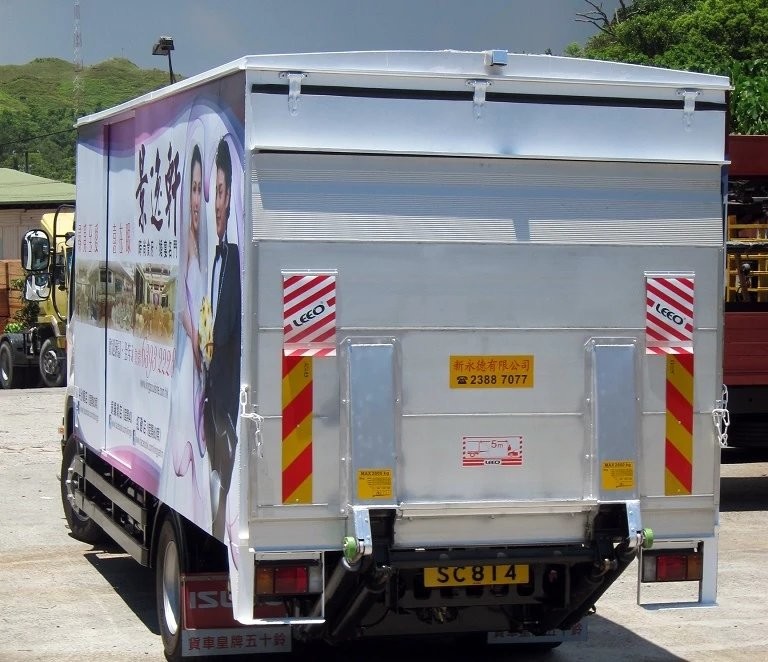

    Light truck car tail lift hydraulic power tailgate lift

    Product Description
    Load Capacity1500 Kg
    Power2KW
    VoltageDC12/V24V
    Platfrom MaterialSteel or Aluminum
    Max lift height1350 MM
    Platform Dimension(W*H)1800*1700 MM
    Weight290--390 Kg
    Lift speed60--90 mm/s
    System PressureSystem Pressure

    Advantage


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and save labor cost,improve the working efficiency.

    Steel material black light hydraulic system truck tailgate lift to 1350m, load capacity 1500kg


    Why Choose US?


    1. The hydraulic system of our products adopts European brands - HALDEX, PAKER.MPI to ensure product quality.


    2. Our product technology has a high starting point, the highest level in China, and most of our products are exported abroad.


    3. We are proficient in products, understand customer needs, put people first, and pursue excellence.


    4. Our philosophy is customer at least, active service.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    FAQ:


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.
