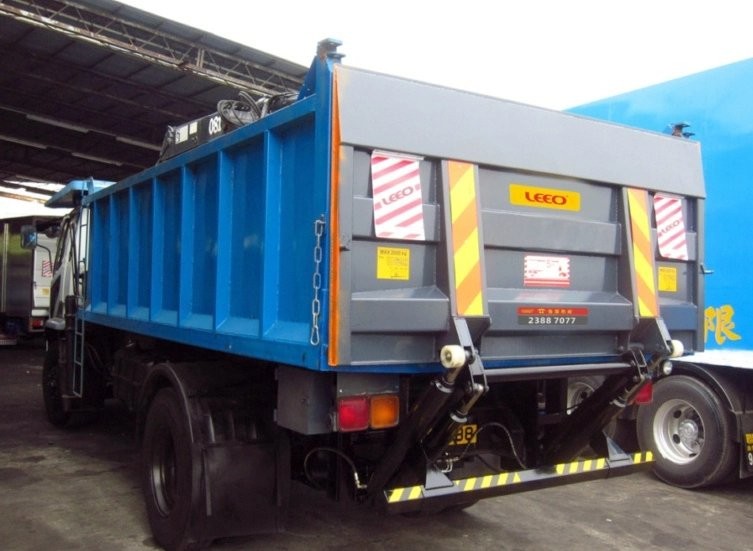

Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder from wholesalers

    Buy cheap Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder from wholesalers
    • Buy cheap Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder from wholesalers
    • Buy cheap Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder from wholesalers
    • Buy cheap Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder from wholesalers
    • Buy cheap Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder from wholesalers

    Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder

    Ask Lasest Price
    Brand Name : Leeo
    Model Number : LA-15-120
    Certification : CE
    Price : $2000---$5000/unit
    Supply Ability : 200 units/ per Month
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    MOQ : 5 Sets
    • Product Details
    • Company Profile

    Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder

    Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder

    Product Description
    Platform Dimension (Width* height)2000 * 1800 MM(also can do customized)
    Platform Weight340-440 KG(depends on material)
    Operating VoltageDC24V
    Power2KW
    Lift Speed60-90mm/s(adjustable)
    System Pressure18MPa
    BrandLEEO
    Load Rated1500 KG
    Max Lift Height1200 MM
    Platform MaterialSteel or Aluminum Alloy

    Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder


    Steel Material Tailgate advantage:


    The advantage of LEEO car tailboard: low price; The plunger cylinder does not need to be sealed and is not prone to leakage; The core components are imported from abroad with guaranteed quality; Corrosiveness and aesthetics.


    How does a power tailgate work?


    What's a Power Liftgate? A power liftgate is a motorized hatch that opens and closes electronically. You can activate the system by pressing or holding a button inside the car, key fob, or the hatch itself. Older iterations required you to unlock the vehicle using the key fob first before you could activate the hatch.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere.


    Why Choose US?


    A>Our products have a high technical starting point: they are at the highest level in China, and a large number of products are exported to Hong KongSingapore,South America market,etc.


    B> We are a professional team and we are proficient in products, understand customers, put people first, and pursue excellence.


    C> Our Philosophy is: Active service, Pursuit of perfection


    D> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality

    Automatic cantilever truck electric tailgate lifting equipment with voltage of 12V/24V and 8L hydraulic cylinder


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590
    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    FAQ


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
