Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG from wholesalers

    Buy cheap Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG from wholesalers
    • Buy cheap Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG from wholesalers
    • Buy cheap Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG from wholesalers

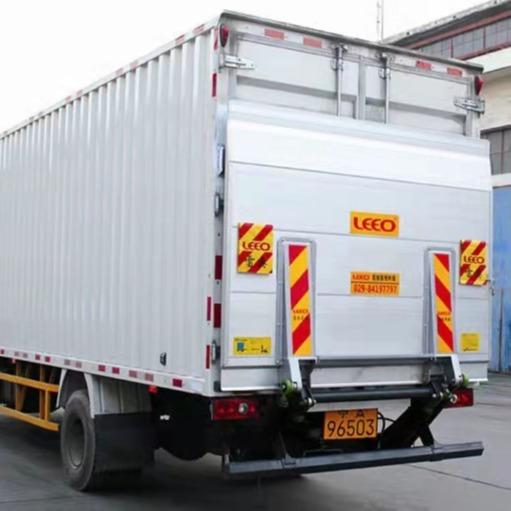

    Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-15-152
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    MOQ : 5 Pcs
    • Product Details
    • Company Profile

    Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG

    Hydraulic Cantilever Tail Lift, Truck Tail Lift With Hydraulic Power Unit Lift

    Product Description

    BrandLEEO
    Load Rated1500 KG
    Max Lift Height1520 MM
    Platform MaterialSteel or Aluminum Alloy
    Platform Dimension (Width* height)2300 * 1800 MM(also can do customized)
    Platform Weight390-515 KG(depends on material)
    Operating VoltageDC24V
    Power2KW
    Lift Speed60-90mm/s(adjustable)
    System Pressure18MPa

    Cantilever lifts work by a set of rams attached to the chassis of the vehicle. These rams are on hinges, allowing them to change angle as they expand or contract. By using the rams in sequence, the working platform can either be tilted, or raised and lowered.

    Cantilever lifts have the advantage of being able to tilt, which means they can often form a ramp arrangement, which may be more appropriate for some applications. It also means that it can be easier to load or unload on uneven ground.


    Advantage


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere


    Why Choose US


    A>Our products have a high technical starting point: they are at the highest level in China, and a large number of products are exported to Hong Kong.


    B>We are a professional team and proficient in products, understand customers, put people first, and pursue excellence.


    C> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    D> Our Philosophy is: Active service, Pursuit of perfection


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    Van Cantilever Tail Lift Truck Hydraulic Liftgate 1500KG


    FAQ


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
