    2000KG Logistics Cantilever Tail Lift JieFang Lorry Tail Gate Transport

    Ask Lasest Price
    Brand Name : leeo
    Model Number : LA-20-135
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

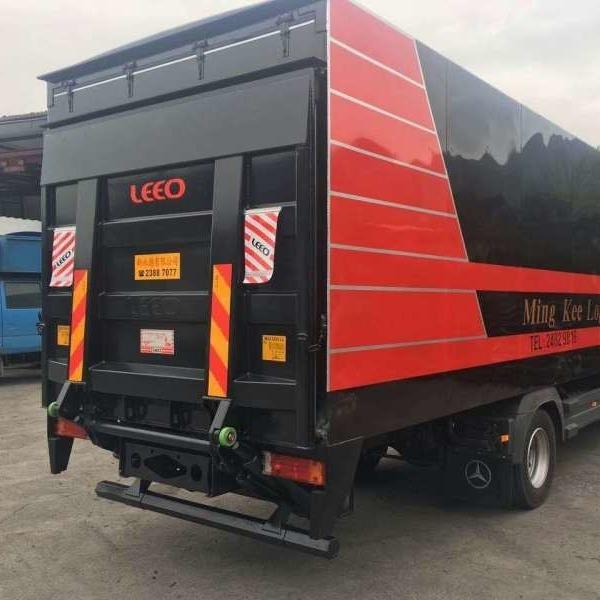

    2000KG Logistics Cantilever Tail Lift JieFang Lorry Tail Gate Transport

    Logistics And Transport Cantilever Tail Gate Lift For Truck/Lorry/Van


    Product Description

    Main cable: National standard YH-25mm²/8.5m

    Hydraulic oil:L-HM series 46# anti-wear hydraulic oil, 10 liters/set

    Valve: Import from famous Swedish brand

    Load Rated: 2000KG

    Max Lift Height:1350MM

    Platform Material: Steel or Aluminum alloy

    Platform Dimension (Standard size: Width * Height) 2200/2300 *1800 MM

    Platform Weight (KG): Steel 550;Aluminum Alloy 400

    Operating Voltage:DC24V

    Power:2.5KW



    How does a hydraulic tail lift work?
    The pressure inside the cylinder forces the piston out, which in turn raises the liftgate plat- form. When the control box switch is turned to the DOWN position, the lowering valve coil is activated, allowing fluid to flow from the cylinder back into the reservoir .


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.Using a tail lift can make it unnecessary to use machinery such as a forklift truck to load heavy items on to a vehicle.


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere


    Why Choose US


    A>We are proficient in products, understand customers, put people first, and pursue excellence.


    B> Our Philosophy is: Active service, Pursuit of perfection


    C>Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality

    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590
    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    2000KG Logistics Cantilever Tail Lift JieFang Lorry Tail Gate Transport


    FAQ


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 30% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
