Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V from wholesalers

    Buy cheap Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V from wholesalers
    • Buy cheap Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V from wholesalers
    • Buy cheap Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V from wholesalers

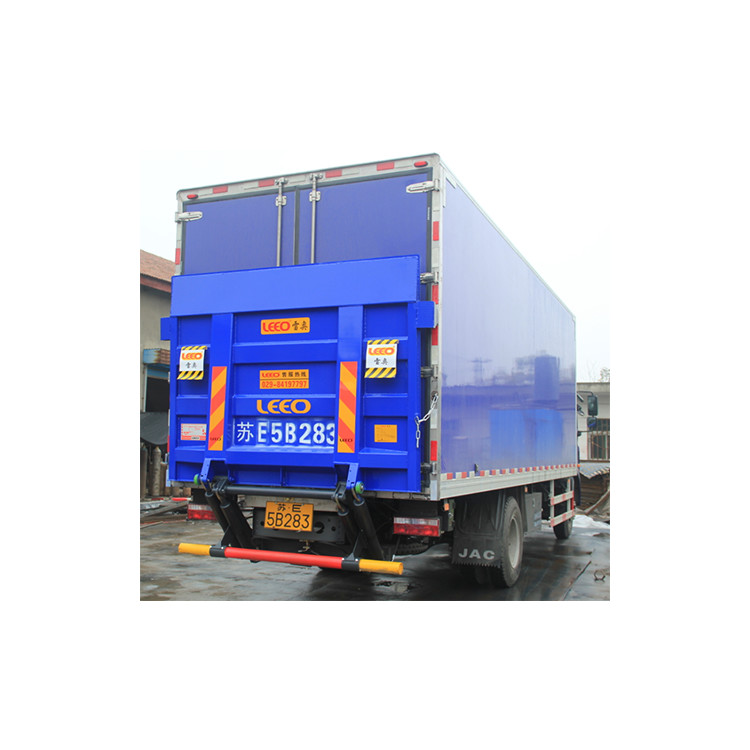

    Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-10-120
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V

    2022 Hydraulic Power Truck Parts Tail Lift Gate Vehicle Tail Lift

    Product Description

    Load Capacity: 500-1000KG

    Max Lift Height:1200MM

    Platform Material: Steel or Aluminum alloy

    Platform Dimension (Standard size: Width * Height) 2000 *1800 MM (also can do customized)

    Weight (KG): Steel 440/Aluminum Alloy 320

    Operating Voltage:DC12V/24V (depends on the vehicle voltage)

    Power:2.5KW

    System Pressure:18Mpa

    Lift Speed:60-90mm/s (adjustable speed)

    Main cable: National standard YH-25mm²/8.5m


    How does a power tailgate work?
    What's a Power Liftgate? A power liftgate is a motorized hatch that opens and closes electronically. You can activate the system by pressing or holding a button inside the car, key fob, or the hatch itself. Older iterations required you to unlock the vehicle using the key fob first before you could activate the hatch.


    The majority of tail lifts are hydraulic or pneumatic in operation, although they can be mechanical, and are controlled by an operator using an electric relay switch.

    Using a tail lift can make it unnecessary to use machinery such as a forklift truck to load heavy items on to a vehicle. A tail lift can also bridge the difference in height between a loading dock and the vehicle load bed.


    Why Choose US


    A>We are proficient in products, understand customers, put people first, and pursue excellence.


    B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    C> Our Philosophy is: Active service, Pursuit of perfection


    D> Our products have a high technical starting point: they are at the highest level in China.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    Load Capacity 1 Ton Freight Lift Gates For Box Trucks DC24V


    FAQ


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
