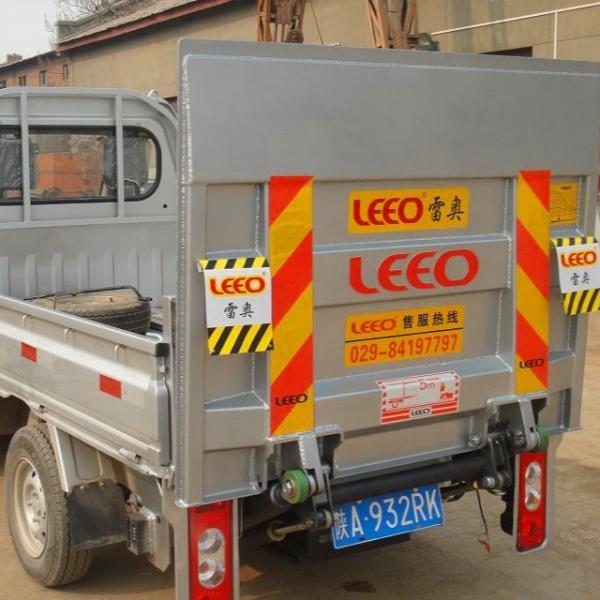

DC12V Hydraulic Tailgate Lift For Pickup Truck

    Buy cheap DC12V Hydraulic Tailgate Lift For Pickup Truck from wholesalers

    Buy cheap DC12V Hydraulic Tailgate Lift For Pickup Truck from wholesalers
    • Buy cheap DC12V Hydraulic Tailgate Lift For Pickup Truck from wholesalers
    • Buy cheap DC12V Hydraulic Tailgate Lift For Pickup Truck from wholesalers

    DC12V Hydraulic Tailgate Lift For Pickup Truck

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-7-90
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Delivery Time : 10-20 work days
    Certification : CE
    MOQ : 5 Sets
    • Product Details
    • Company Profile

    DC12V Hydraulic Tailgate Lift For Pickup Truck

    High Quality truck parts hydraulic tail lift desk tail lift for Van/Truck for sales

    Product Description
    Platform Dimension (Width* height)1600 * 1700 MM(also can do customized)
    Platform Weight260-320 KG(depends on material)
    Operating VoltageDC12V/24V
    Power2KW
    Load Rated700 KG
    Max Lift Height900 MM
    Platform MaterialSteel or Aluminum Alloy

    How does a hydraulic tail lift work?
    The pressure inside the cylinder forces the piston out, which in turn raises the liftgate plat- form. When the control box switch is turned to the DOWN position, the lowering valve coil is activated, allowing fluid to flow from the cylinder back into the reservoir .


    Using a tail lift can make it unnecessary to use machinery such as a forklift truck to load heavy items on to a vehicle. A tail lift can also bridge the difference in height between a loading dock and the vehicle load bed.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    Why Choose US


    A>Our Philosophy is: Active service, Pursuit of perfection.


    B> Our product hydraulic system use well-known brands—HALDEX, PAKER.MPI to ensure quality


    C> Our products have a high technical ant its the highest level in China


    D> We are a professional team in the industry at home and abroad; and we are proficient in products, understand customers, put people first, and pursue excellence.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.

    DC12V Hydraulic Tailgate Lift For Pickup Truck


    FAQ


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.
