    1200mm Hydraulic Vehicle Tail Lift Foton

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-15-120
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Delivery Time : 10-20 work days
    Certification : CE
    MOQ : 5 Sets
    • Product Details
    • Company Profile

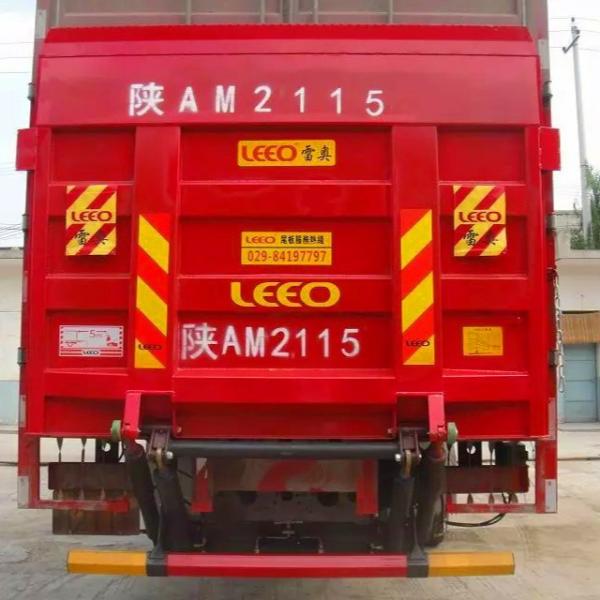

    1200mm Hydraulic Vehicle Tail Lift Foton

    Vehicle Hydraulic Tail Gate Lift Fortuner,Steel Truck Tail Lift For Sales

    Product Description

    BrandLEEO
    Load Rated1500 KG
    Max Lift Height1200 MM
    Platform MaterialSteel or Aluminum Alloy
    Platform Dimension (Width* height)2000 * 1800 MM(also can do customized)
    Platform Weight340-440 KG(depends on material)
    Operating VoltageDC12V/24V
    Power2KW
    Lift Speed60-90mm/s(adjustable)
    System Pressure18MPa

    How often should a tail lift be inspected?
    every six months
    Those inspections must take place at a frequency of no more than every six months, and it is a legal requirement that you have the current report of this examination for the tail-lift that is fitted to the vehicle.


    Tail lifts can easier to safely load and unload trucks with cost efficiency, flexibility,also a high level of operating comfort for users.


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere


    Why Choose US


    A>Our products are at the highest level in China,since we have high level of techincal .


    B> Our tail lift hydraulic system selects brands—HALDEX, PAKER.MPI to ensure quality


    C> Our Philosophy is: Active service, Pursuit of perfection


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    1200mm Hydraulic Vehicle Tail Lift Foton


    FAQ


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW ABOUT THE PAYMENT?

    A:T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.
