Tail Lift For Trucks Hydraulic Tail Lift Gate For Logistics And
Transport
Product Description
| Platform Weight | 420-535 KG(depends on material) |
| Operating Voltage | DC24V |
| Power | 2KW |
| Lift Speed | 60-90mm/s(adjustable) |
| Load Rated | 2000 KG |
| Max Lift Height | 1350 MM |
| Platform Material | Steel or Aluminum Alloy |
| Platform Dimension (Width* height) | 2200 * 1800 MM(also can do customized) |

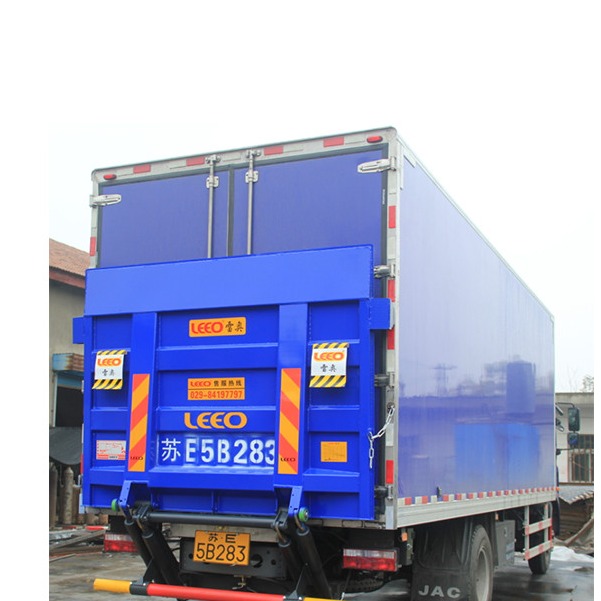

What is a hydraulic tailgate?
A Liftgate, which can also be referred to as a Tail lift, is a
mechanical device which is installed permanently at the back or the
rear end of a large vehicle like a truck, a lorry or a van. It is
used to load and unload freight from the ground and into the back
of the truck.
The majority of tail lifts are hydraulic or pneumatic in operation,
although they can be mechanical, and are controlled by an operator
using an electric relay switch.
Using a tail lift can make it unnecessary to use machinery such as
a forklift truck to load heavy items on to a vehicle. A tail lift
can also bridge the difference in height between a loading dock and
the vehicle load bed.
Tail lifts are available for many sizes of vehicle, from standard
vans to articulated lorries, and standard models can lift anywhere
Tail lifts make it easier to safely load and unload trucks and are
synonymous with cost efficiency, flexibility and a high level of
operating comfort for users.
Tail lifts are available for many sizes of vehicle, from standard
vans to articulated lorries, and standard models can lift anywhere
Why Choose US
A>Our product hydraulic system selects European well-known
brands—HALDEX, PAKER.MPI to ensure quality
B> Our products have a high technical starting point: they are at the
highest level in China, and a large number of products are exported
to abroad.
C> We are a professional team; we are proficient in products,
understand customers, put people first, and pursue excellence.
D> Our Philosophy is: Active service, Pursuit of perfection
Main Products Parameter
| Model No | Load capacity (KG) | Height from Ground to Carriage (MM) | Platform Dimension (W*H) MM | Operating Voltage (V) | Lifting Speed (CM/S) | Total weight (KG) |
| Steel | Aluminum Alloy |
| LA-7-90 | 700 | 800-900 | 1600*1700 | 12 | 6-9 | 320 | 260 |
| LA-10-120 | 1000 | 950-1200 | 1800*1700 | 12/24 | 6-9 | 390 | 290 |
| LA-15-120 | 1500 | 950-1200 | 2000*1700 | 12/24 | 6-9 | 450 | 330 |
| LA-15-135 | 1500 | 1050-1350 | 2200*1800 | 24 | 6-9 | 490 | 370 |
| LA-15-152 | 1500 | 1150-1520 | 2300*1800 | 24 | 6-9 | 550 | 430 |
| LA-20-135 | 2000 | 1050-1350 | 2400*1800 | 24 | 6-9 | 520 | 410 |
| LA-20-152 | 2000 | 1150-1520 | 2400*1800 | 24 | 6-9 | 580 | 460 |
| LA-25-152 | 2500 | 1150-1520 | 2400*1800 | 24 | 6-9 | 630 | 490 |
| LA-25-160 | 2500 | 1150-1600 | 2400*1800 | 24 | 6-9 | 750 | 590 |
Company Profile
Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August
2011, is located in the beautiful historical city - Xi'an, Shaanxi
Province. It is a professional manufacturer of "truck hydraulic
tailgate lift" products of high-tech private enterprises, the
company gathered a number of domestic and foreign outstanding truck
tailgate lift industry specialized persons, concentrate,
professional, focus on truck tailgate lifts products and parts of
the technology research and development, manufacturing and sales,
"integrity, innovation, creating value for customers" business
philosophy, To build "LEEO ® " tailgate lift high-end national
brand, based on the domestic, look at the world, exhausted and
domestic and foreign automobile manufacturing enterprises,
logistics and transport enterprises and the community sincere
cooperation and provide excellent products and the highest quality
services.
FAQ
Q: HOW LONG IS THE WARRANTY TIME?
A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.
Q: WHAT ABOUT THE AFTER-SALE SERVICE?
A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR
VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
Q:HOW AHOUT THE DELIVERY TIME?
A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.
Q:HOW ABOUT THE PAYMENT?
A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
