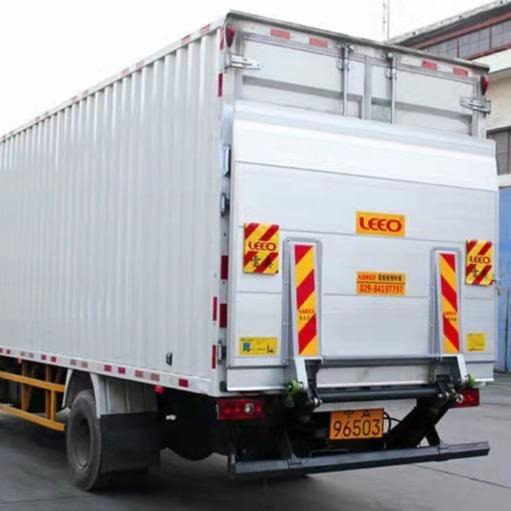

    DC24V Hydraulic Truck Tail Lift 2000kg Lorry Tail Gate

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-20-135
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    DC24V Hydraulic Truck Tail Lift 2000kg Lorry Tail Gate

    Truck tail lift loading with 2 Ton capacity hydraulic truck tail lift

    Product Description

    Load Capacity: 2000 Kg

    Power: 2KW

    Voltage: DC24V

    Platfrom Material: Steel or Aluminum

    Max lift height: 1350 MM

    Platform Dimension(W*H) 2200*1800 MM

    Weight: 400--520 Kg

    Lift speed: 60--90 mm/s

    System Pressure: 18Mpa


    Hydraulic cylinderSelected American PAKER, MPI low temperature resistant sealing ring, the piston rod is plated with hard chromium, the cylinder barrel is super-precisely ground, two multi-combination sealing structure, the performance is more stable. The cylinder is equipped with a sleeve-type sheath, which is beautiful in appearance and durable.

    A tail lift (term used in the UK, also called a "liftgate" in North America) is a mechanical device permanently installed on the rear of a work truck, van, or lorry, and is designed to facilitate the materials handling of goods from ground level or a loading dock to the level of the vehicle bed, or vice versa.


    Tail lifts make it easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating.Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere.


    Why Choose US


    A>Our products have a high technical starting point: they are at the highest level in China.


    B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI


    C> We are a professional team ; we are proficient in products, understand customers, put people first, and pursue excellence.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    DC24V Hydraulic Truck Tail Lift 2000kg Lorry Tail Gate


    FAQ


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
