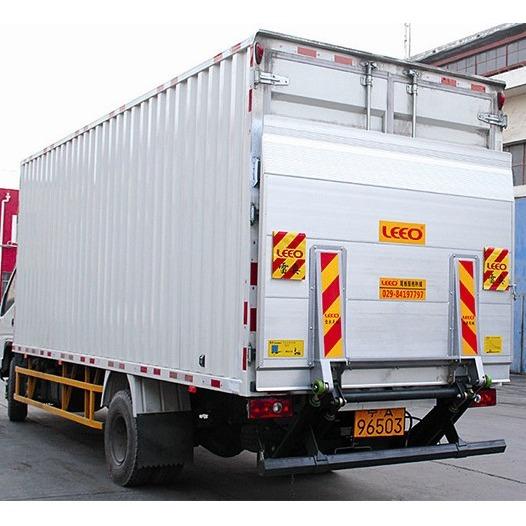

Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up from wholesalers

    Buy cheap Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up from wholesalers
    • Buy cheap Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up from wholesalers
    • Buy cheap Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up from wholesalers

    Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up

    Ask Lasest Price
    Brand Name : Leeo
    Model Number : LA-10-120
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

    Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up

    Pickup Hydraulic Power Tailgate Lift For Lorry Tail Gate


    Product Description

    System Pressure: 18Mpa

    Max lift height: 1200 MM

    Load Capacity: 1000 Kg

    Voltage: DC24V

    Platfrom Material: Steel or Aluminum

    Power: 2KW

    Platform Dimension(W*H) 2000*1800 MM

    Weight: 290--400 Kg

    Lift speed: 60--90 mm/s


    Electric control boxAccording to the material, it is divided into two types: carbon steel and stainless steel. The buttons are all high-performance waterproof buttons, reliable in quality, easy to operate.

    The majority of tail lifts are hydraulic or pneumatic in operation, although they can be mechanical, and are controlled by an operator using an electric relay switch.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere


    Why Choose US


    A>Our products have a high technical starting point: they are at the highest level in China, and a large number of products are exported to abroad.


    B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    C> We are a professional team and we are proficient in products, understand customers, put people first, and pursue excellence.


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    Van Truck 1.0 Ton Hydraulic Lift Gates ISO9001 Tail Lift Pick Up


    FAQ


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
