    Dongfeng Hydraulic Tailgate Lifter 2 Ton

    Ask Lasest Price
    Brand Name : Leeo
    Model Number : LA-20-152
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

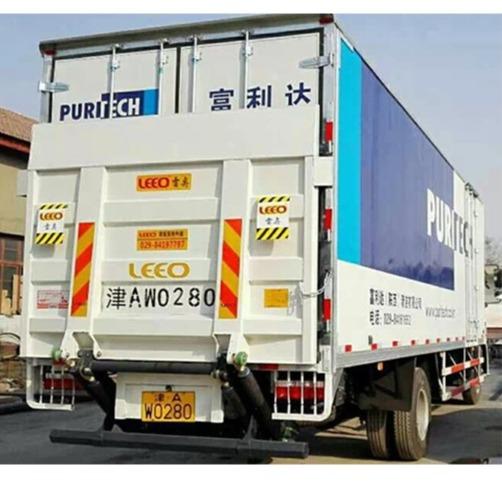

    Dongfeng Hydraulic Tailgate Lifter 2 Ton

    Truck Spare Parts Lorry Tail Gate Hydraulic Power Tail Gate Lift For Truck/Van


    Product Description

    BrandLEEO
    Load Rated2000 KG
    Max Lift Height1520 MM
    Platform MaterialSteel or Aluminum Alloy
    Platform Dimension (Width* height)2300 * 1800 MM(also can do customized)
    Platform Weight410-535 KG(depends on material)
    Operating VoltageDC24V
    Power2KW
    Lift Speed60-90mm/s(adjustable)
    System Pressure18MPa

    Using a tail lift can make it unnecessary to use machinery such as a forklift truck to load heavy items on to a vehicle. A tail lift can also bridge the difference in height between a loading dock and the vehicle load bed.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    How does a hydraulic tail lift work?


    The pressure inside the cylinder forces the piston out, which in turn raises the liftgate plat- form. When the control box switch is turned to the DOWN position, the lowering valve coil is activated, allowing fluid to flow from the cylinder back into the reservoir .


    Why Choose US


    A>We are proficient in products, understand customers, put people first, and pursue excellence.


    B> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    C> Our products have a high technical starting point: they are at the highest level in China.


    D> Our Philosophy is: Active service, Pursuit of perfection

    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    FAQ


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
