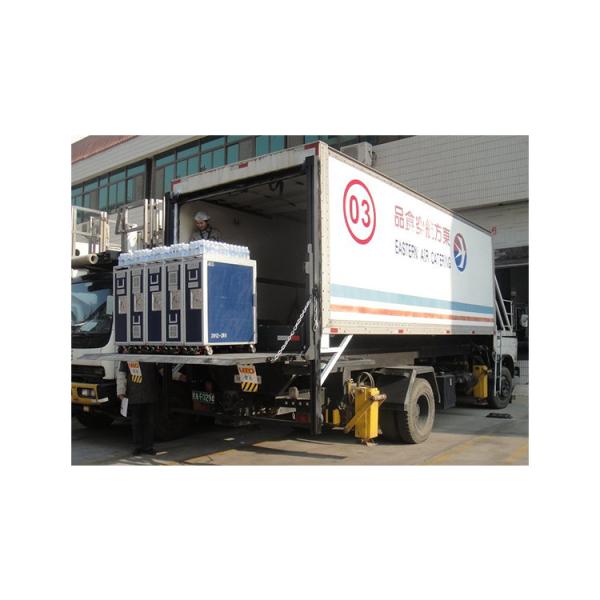

    800MM Column Tail Lift Gate 750KG Truck Hydraulic Liftgate

    Ask Lasest Price
    Brand Name : leeo
    Model Number : LAC-7.5-80
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    MOQ : 10 PCS
    • Product Details
    • Company Profile

    800MM Column Tail Lift Gate 750KG Truck Hydraulic Liftgate

    Wholesale Truck Mounted Rear Hydraulic Lifting Column Tail Lift Gate
    Product Description
    BrandLEEO
    Load Rated750KG
    Max Lift Height800 MM
    Platform MaterialSteel
    Platform Dimension (Width* height)1150 * 1860 MM(also can do customized)
    Platform Weight350 KG
    Operating VoltageDC12V/DC24V
    Power2KW
    Lift Speed60-90mm/s(adjustable)
    System Pressure18MPa

    Column lifts are "beefier" versions of railgates, supporting some of the highest lifting capacities of any type of hydraulic lift. Like Railgate lifts, Column Lifts feature "tracks" that install directly onto the vehicle body. From the tracks a folding platform extends and lifts completely vertically.

    Column lifts have the advantage of being able to lift to a higher level than the load bed, also known as "above bed travel," and are therefore preferable for vehicles with bed heights lower than standard dock height.

    The disadvantages of column lifts include that the platform is only usually able to operate at a 90° angle from the track, meaning that on uneven surfaces, the lift will not meet the ground properly.


    The advantages of column lifting tail:


    1.Adjust the height as needed, have enough working space

    2.Stable natural force, stable vertical lifting
    3.
    Easy to operate, improve work efficiency
    4.Hydraulic power, high efficiency, energy saving and reliable


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)

    Total weight (KG)


    LAC-7.5-80750600-8001860*115012/247-10350
    LAC-10-1101000700-11001860*115012/247-10380
    LAC-15-1351500750-13502340*1500247-10420

    Company Profile


    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    FAQ


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.
