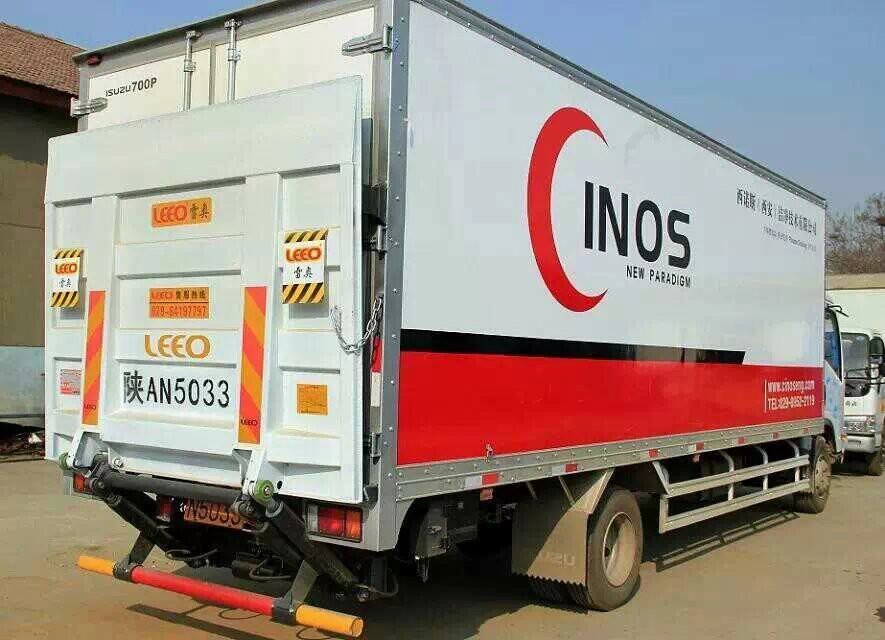

2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap 2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck from wholesalers

    Buy cheap 2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck from wholesalers
    • Buy cheap 2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck from wholesalers
    • Buy cheap 2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck from wholesalers

    2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck

    Ask Lasest Price
    Brand Name : LEEO
    Model Number : LA-20-135
    Supply Ability : 200 units/ per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck

    2 Ton Vehicle Tail Lift Loading Hydraulic Tail Lift Board Platform For Cargo Truck

    Product Description

    Weight (KG): About 410--520

    Operating Voltage:DC24V Power:2.5KW

    System Pressure:18Mpa

    Lift Speed:60-90mm/s (adjustable speed)

    Main cable: National standard YH-25mm²/8.5m

    Hydraulic oil:L-HM series 46# anti-wear hydraulic oil, 10 liters/set

    Lift Mechanism: Manual Load Capacity: 2000KG

    Max Lift Height:1350MM

    Platform Material: Aluminum alloy

    Platform Dimension (Standard size: Width * Height) 2200 *1800 MM


    How does a hydraulic tail lift work?
    The pressure inside the cylinder forces the piston out, which in turn raises the liftgate plat- form. When the control box switch is turned to the DOWN position, the lowering valve coil is activated, allowing fluid to flow from the cylinder back into the reservoir .


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.The majority of tail lifts are hydraulic or pneumatic in operation, although they can be mechanical, and are controlled by an operator using an electric relay swirch.


    Why Choose US


    A>Our Philosophy is: Active service, Pursuit of perfection


    B> We are proficient in products, understand customers, put people first, and pursue excellence.


    C>Our products have a high technical starting point: they are at the highest level in China.


    D> Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    2 Ton Vehicle Tail Lift CE Hydraulic Tailgate Lift For Cargo Truck


    FAQ


    Q:HOW TO DELIVERY THE GOODS.

    A: BY SEA OR BY RAILWAY.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.
