1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever

XI'an Leeo Hydraulic Equipment Limited Company
Contact Now
    Buy cheap 1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever from wholesalers

    Buy cheap 1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever from wholesalers
    • Buy cheap 1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever from wholesalers
    • Buy cheap 1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever from wholesalers

    1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever

    Ask Lasest Price
    Brand Name : Leeo
    Model Number : LA-7-90
    Supply Ability : 200 Foot/Feet per Month
    Price : $2000---$5000/unit
    Certification : CE
    Delivery Time : 10-20 work days
    Payment Terms : T/T
    • Product Details
    • Company Profile

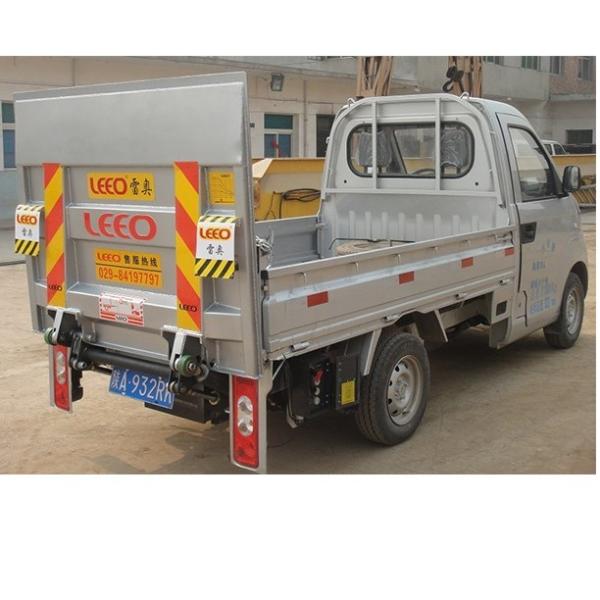

    1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever

    Direct Sale Power Truck Electric Lift Gate Ford Automatic Tail Gate Ket


    Product Description
    Platform Dimension (Width* height)1600 * 1700 MM(also can do customized)
    Platform Weight260-320 KG(depends on material)
    Operating VoltageDC12V
    Power2KW
    Load Rated700 KG
    Max Lift Height900 MM
    Platform MaterialSteel or Aluminum Alloy

    What is cantilever tail lift?

    Cantilever tail-lifts are stowed vertically and form part or all of the rear closure. The platform has an angled lip at the end allowing it to be rotated downwards. This allows roll cages and pallet trucks to be easily loaded from ground level.


    Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users.


    Tail lifts are available for many sizes of vehicle, from standard vans to articulated lorries, and standard models can lift anywhere up to 2500kg.


    Why Choose US


    A>We are proficient in products, understand customers, put people first, and pursue excellence.


    B>Our product hydraulic system selects European well-known brands—HALDEX, PAKER.MPI to ensure quality


    C>Our products have a high technical starting point: they are at the highest level in China.


    D>Our Philosophy is: Active service, Pursuit of perfection


    Main Products Parameter


    Model NoLoad capacity (KG)Height from Ground to Carriage (MM)Platform Dimension (W*H) MMOperating Voltage (V)Lifting Speed (CM/S)Total weight (KG)
    SteelAluminum Alloy
    LA-7-90700800-9001600*1700126-9320260
    LA-10-1201000950-12001800*170012/246-9390290
    LA-15-1201500950-12002000*170012/246-9450330
    LA-15-13515001050-13502200*1800246-9490370
    LA-15-15215001150-15202300*1800246-9550430
    LA-20-13520001050-13502400*1800246-9520410
    LA-20-15220001150-15202400*1800246-9580460
    LA-25-15225001150-15202400*1800246-9630490
    LA-25-16025001150-16002400*1800246-9750590

    Company Profile

    Xi'an Leeo Hydraulic Equipment Co., Ltd., established in August 2011, is located in the beautiful historical city - Xi'an, Shaanxi Province. It is a professional manufacturer of "truck hydraulic tailgate lift" products of high-tech private enterprises, the company gathered a number of domestic and foreign outstanding truck tailgate lift industry specialized persons, concentrate, professional, focus on truck tailgate lifts products and parts of the technology research and development, manufacturing and sales, "integrity, innovation, creating value for customers" business philosophy, To build "LEEO ® " tailgate lift high-end national brand, based on the domestic, look at the world, exhausted and domestic and foreign automobile manufacturing enterprises, logistics and transport enterprises and the community sincere cooperation and provide excellent products and the highest quality services.


    1700mm Truck Lift Gate 2.5 Ton Hydraulic Tailgate Lifter Cantilever


    FAQ


    Q:HOW AHOUT THE DELIVERY TIME?

    A:THE DELIEVERY TIME IS ABOUT 10-15 DAYS AFTER RECEIPT DEPOSITE.


    Q:HOW ABOUT THE PAYMENT?

    A:WE USED T/T 50% AS DEPOSIT AND BALANCE BEFORE SHIPMENT.


    Q: HOW LONG IS THE WARRANTY TIME?

    A:2000 WORKING HOURS OR 12 MONTHS,WHICHEVER COMES FIRST.


    Q: WHAT ABOUT THE AFTER-SALE SERVICE?

    A: IF THERE ANY QUALOTY ISSUE, PLEASE SEND US THE PHOTOS OR VIDEO,WE WILL OFFER THE SOLUTION WITHIN 24 HOURS.
